Dolmen
The Future Airburne Capability Environment (FACE) provides a well-defined environment for developing portable applications. Dolmen is aligned with the FACE Technical Standard 2.0 and provides the I/O Services and Transport Connections upon which any FACE-conformant application can run.
Complete
Dolmen provides the I/O Services and Transport Services Segments to provide a complete FACE environment. From controlling discretes and the MIL-STD-1553 bus to POSIX Sockets and Message Queues, Dolmen is the complete FACE solution.
Reliable
Dolmen is engineered for the most resource-constrained environments, including low-power processors and limited-memory environments. Dolmen was designed according to MISRA guidelines and DO-178B considerations.
Precise
Dolmen faithfully implements all requirements from the FACE Technical Standard Edition 2.0. Every requirement is traceable in Dolmen and automated testing achieves nearly 100% statement level coverage.
Sample Platforms
| Manufacturer | Platform | Operating System | I/O Services |
|---|---|---|---|
| Ballard Technologies | Avionics BusBox | Linux | Discrete, Serial, MIL-STD-1553 |
| Orbital ATK | JATAS | VxWorks | Discrete, Serial |
| Rigel Engineering | ShotFinder | Linux | Discrete, Serial, I2C, ALSA |
| Raspberry Pi Foundation | Raspberry Pi | Linux | Discrete, Serial |
| Apple | Mac Mini | Mac OS X | Serial |
I/O Services
Dolmen supports the full range of I/O services to allow Platform-Specific components to access the I/O Services Segment.
- MIL-STD-1553
- Serial
- Discrete
- Generic Bus
- Loopback *
- SMBus *
- I2C *
- ALSA *
* Dolmen extensions to FACE.
Transport Connections
Dolmen supports all of the POSIX transport interfaces. Please contact sales for more information about the ARINC transport interfaces.
- POSIX Sockets
- POSIX Message Queues
- POSIX Shared Memory
- CORBA
- ROSA Buffers *
- ROSA Circular Queue *
- ROSA Memory Block *
* Dolmen extensions to FACE.

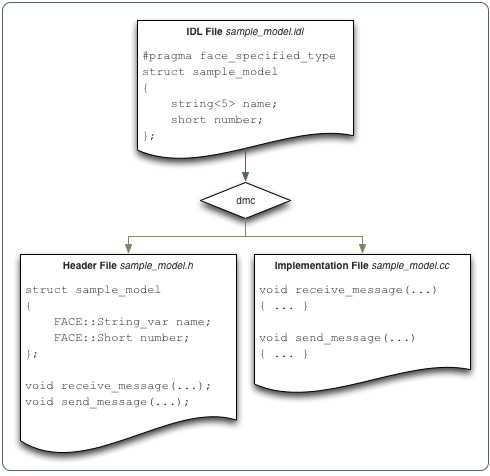

Generate Code
The Dolmen development tools include an IDL compiler that takes industry-standard CORBA IDL and produces the FACE-specific C++ transport code automatically.
Quoit
FACE provides an excellent framework for developing portable applications, but the official API can be cumbersome. Quoit is a C++ framework that hides much of the complexity of FACE and allows you to develop applications quickly while still maintaining FACE-conformance.
Simple
Quoit provides a number of classes that abstract the I/O and transport services data formats so you can focus on the meaning, not the layout. Quoit sits between you and the FACE environment, such as Dolmen, and manages I/O services and transport connections automatically.
Future-proof
FACE is a living standard and is moving faster than most developers can keep up with. Let Quoit handle the changes between FACE revisions and keep your applications protected from the ever-changing standard.
Portable
Quoit not only works with Dolmen, but it will work with any FACE-conformant environment. Quoit helps maintain platform-independence by relying on the FACE environment for configuration and all data interactions.
